PLEASE NOTE COLOURS CAN VARY - CURRENTLY AVAILABLE IN RED

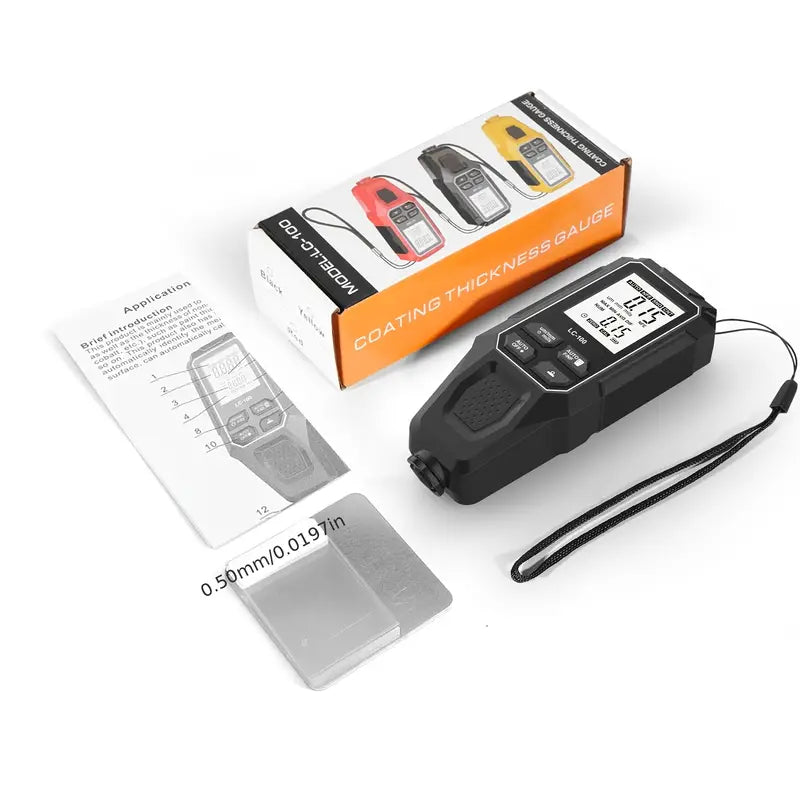

The LC-100 coating thickness gauge is a portable digital tool designed to non-destructively measure paint, enamel, chrome, and anodized layers on metal surfaces with a 0–2000µm range. It automatically identifies ferrous (Fe) and non-ferrous (NFe) substrates using electromagnetic induction and eddy current effects.
Key Specifications
Range: 0 to 2000µm (0 to 80 mils)
Resolution: 1µm
Accuracy: ±(3% + 1µm)
Display: Digital LCD with backlight
Power: 2 AAA batteries
Core Features
Auto-Substrate Detection: Switches between magnetic and non-magnetic metal bases on its own.
Backlit Screen: Shows readings, battery level, and operating mode clearly in dark areas.
Car Paint Inspection:
